• 2,692

    Maximum Range

  • 303

    Maximum Cruise Speed

  • 15

    Maximum Occupants

  • 7,145

    Useful Load

  • 4,057

    Takeoff Field Length

One Aircraft, Many Missions

When government, military and commercial customers want airborne solutions for critical missions, they turn to Beechcraft. Our aircraft provide the high performance and flight characteristics required to address the unique challenges of special mission operations.




Interior

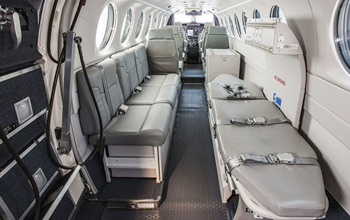

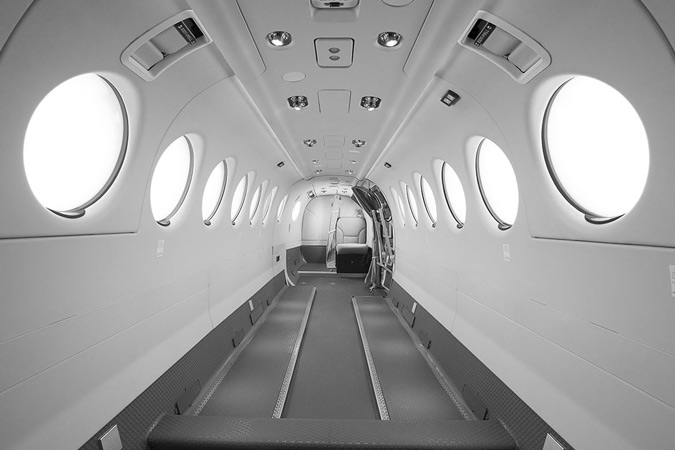

Multi-Mission Interior

The King Air 350ER offers flexible, reconfigurable interiors, making them equally adept at accommodating passengers, cargo, air ambulance or other missions. It's no surprise organizations choose Beechcraft to transport their important personnel and cargo – no matter where they fly.

Transitional Installations

Interior installations can quickly accommodate a variety of missions.

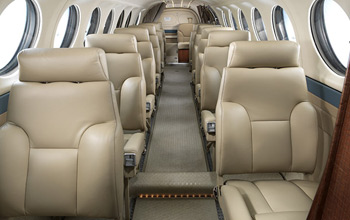

Available Seating Up To 11

The King Air 350ER provides large, pressurized, environmentally controlled cabins.

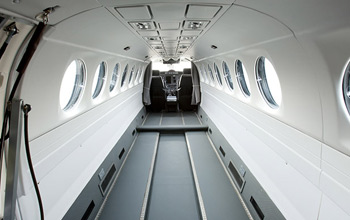

Reconfigurable Interior

The King Air 350ER offers flexible, reconfigurable interiors making them equally capable of accommodating passengers, cargo, or air ambulance operations.

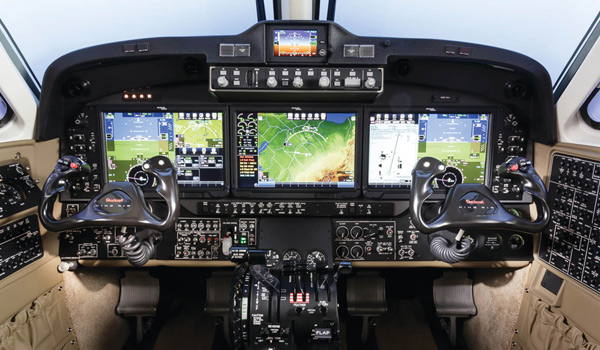

Avionics

Inspired Control

Rockwell Collins Pro Line Fusion was created with pilot workload in mind. This system offers simplified single-pilot operation to reduce pilot fatigue and reduce operating economics. Pro Line Fusions modernized center console provides an alternate input method for flexible, heads-up flying.

Tap for Situational Awareness

The SVS provides more situational awareness, and touch-interactive graphical maps provide high-resolution terrain, weather overlays, obstacles and geopolitical boundaries.



Standard Features

  • Intuitive graphical touchscreen flight planning
  • High-resolution Synthetic Vision System (SVS)
  • Convenient presets to reconfigure all three displays with a single touch
  • Full multi-sensor flight management system
  • Integrated touchscreen checklists
  • Multi-Scan Weather Radar System (WXR)
  • Open and scalable architecture for future upgrades and mandates
  • NextGen and precision GPS capabilities


Specifications

Performance Without Compromise

Dimensions

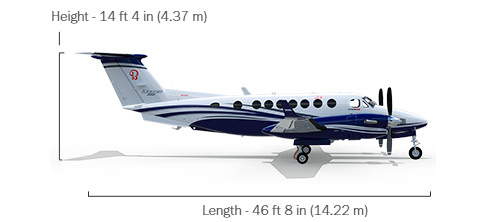

Length 46 ft 8 in (14.22 m)
Height 14 ft 4 in (4.37 m)

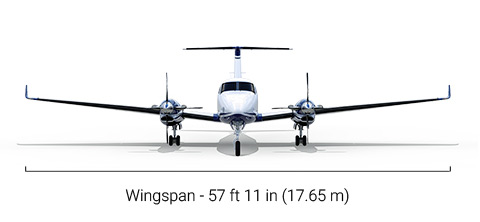

Wingspan 57 ft 11 in (17.65 m)
Wing Area 310 sq ft (28.8 sq m)
Wheelbase 16 ft 3 in (4.95 m)
Tread 17 ft 2 in (5.23 m)
Cabin Interior
Height 57 in (1.45 m)
Width 54 in (1.37 m)
Length 19 ft 6 in (5.94 m)
Maximum Occupants 15
Baggage Capacity
Weight N/A
Volume N/A
Weights
Maximum Ramp Weight 16,600 lb (7,530 kg)
Maximum Takeoff Weight 16,500 lb (7,484 kg)
Maximum Landing Weight 15,675 lb (7,110 kg)
Usable Fuel Weight 5,192 lb (2,355 kg)
Usable Fuel Volume 775 gal (2,934 l)
Basic Operating Weight 9,455 lb (4,289 kg)
Useful Load 7,145 lb (3,241 kg)
Maximum Payload 3,545 lb (1,608 kg)
Full Fuel Payload 1,953 lb (886 kg)
Performance
Maximum Cruise Speed 303 ktas (561 km/h)
Maximum Range 2,692 nm (4,986 km)
Takeoff Field Length 4,057 ft (1,237 m)
Landing Distance 2,728 ft (831 m)
Maximum Operating Altitude 35,000 ft (10,668 m)
Maximum Climb Rate 2,400 fpm (732 mpm)
Maximum Limit Speed 245 kias (454 km/h)
Stall Speed 82 kcas (152 km/h)

Powerplant
Manufacturer Pratt & Whitney Canada
Model PT6A-60A
Power Rating 1,050 shp (1,050 shp)
