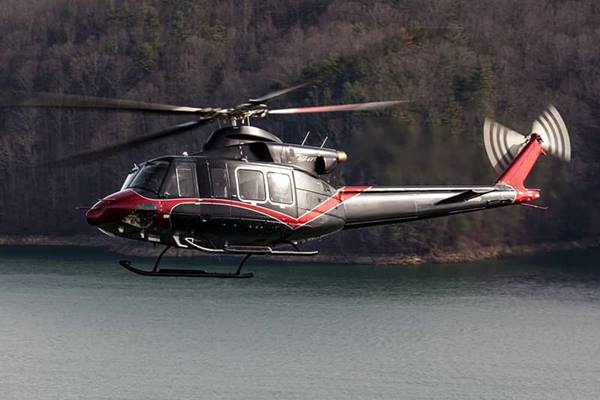

ELEVATING EXCELLENCE. With improved performance and safety features, the SUBARU BELL 412EPX provides more capability while maintaining its long-established reputation for utility and reliability for commercial customers. The SUBARU BELL 412EPX benefits from a more robust main rotor gearbox, dry run capability, increased internal Maximum Gross Weight to 12,200 lbs., and mast torque output of +11% at speeds below 60 knots. And with a phenomenal increase in External Gross Weight to 13,000 lbs., the SUBARU BELL 412EPX provides operators the ability to transport more supplies and achieve better operational efficiency.

  • 123Kts

    Max Cruise

  • 398Nm

    Max Range

  • 2Crew+13Pax

    Seating Capacity



Missions

Customize the spacious cabin to match your mission’s needs. From airborne command to search and rescue, evacuations to special ops—no task is too tough.

When lives are on the line, have the space you need to care for up to six patients. With large sliding doors on both sides, you can get them in easily, out quickly and safe sooner.

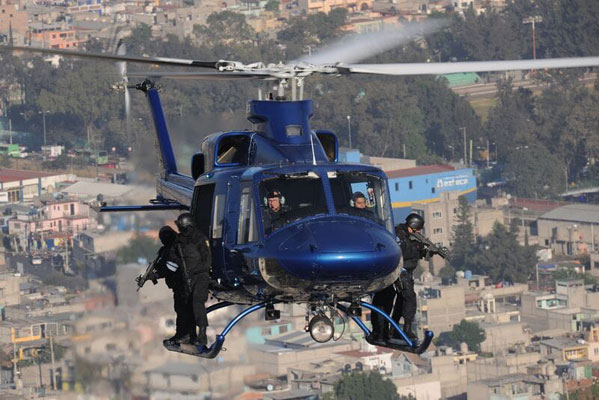

Seating for 14 troops. A large storage compartment. And an airframe you can rely on, even in extreme conditions. So you can get everyone there and back.

Weather radar, wire-strike technology and an intense searchlight keep you in control of your environment—and out of harm’s way.



Features

Move More, Easily

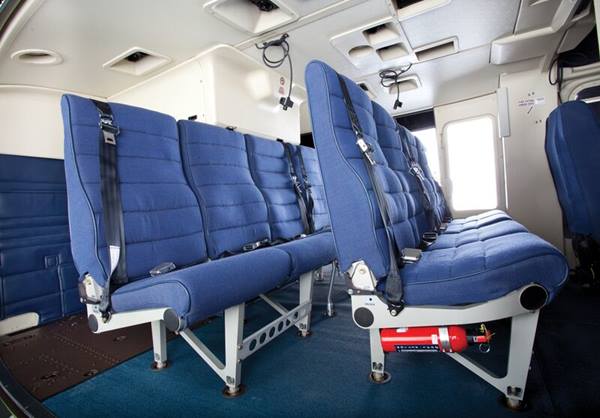

Never be short on space with seating for 14 passengers and the widest cabin opening in its class. You can easily transport all the crew and equipment you need, comfortably.

Modern Flight Tech

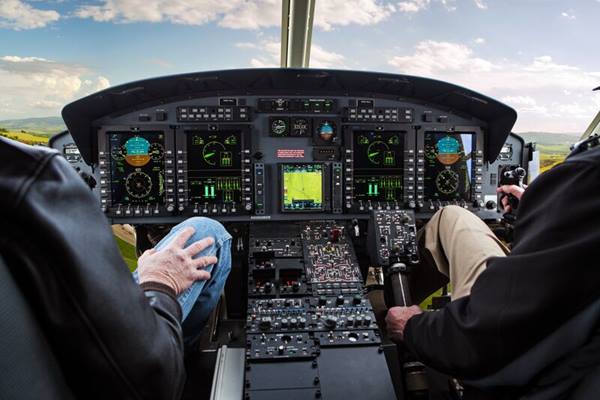

Four displays—with high-res maps, terrain data and touch controls—put vital information at your fingertips. Easy scanning. Smooth flying.

Optimal Handling

The standard equipment BLR Strake and Fast Fin improve airflow around the tail boom, giving you strong handling, stability and lift—even in high-speed crosswinds or hot and high conditions.

High-altitude Power

Pratt & Whitney twin engines provide ample power at high altitudes, and a takeoff rating just as high—putting power in the palm of your hand.

Operate Safely

With chip detection, debris collection and rollover bulkheads—we offer the protection needed for you and your crew.



Specifications

SPEEDS AT MAX GROSS WEIGHT
VNE 140 kts 259 km/h
Max Cruise 123 kts 228 km/h
Range at VLRC1 361 nm 669 km
Max Endurance1   3.8 hrs
CAPACITIES
Standard Seating   1 + 14
Maximum Seating   1 + 14
Standard Fuel 331 US gal 1,251 litres
Aux Fuel (Optional) 33 or 163 US gal 123 or 617 liters
Cabin Volume 220 ft³ 6.2 m³
Aft (Baggage) Compartment Volume 28 ft³ 0.8 m³
WEIGHTS
Empty Weight (Standard, IFR Configuration) 6,815* lbs 3,091* kg
Max Gross Weight (Internal) 12,200 lbs 5,534 kg
Max Gross Weight (External) 13,000 lbs 5,897 kg
Useful Load (Internal, Standard, IFR Configuration) 5,385 lbs 2,443 kg
Useful Load (External, Standard, IFR Configuration) 6,185 lbs 2,805 kg
Cargo Hook Capacity 5,000 lbs 2,268 kg

1 Std Max GW, ISA, std fuel, no reserve at sea level
* Empty weight with standard cabin seats is 7,025 lbs.
