• 2,100

    Maximum Range

  • 441

    Maximum Cruise Speed

  • 9

    Maximum Passengers

  • 7,540

    Useful Load

  • 3,560

    Takeoff Distance

Outperforming your Expectations

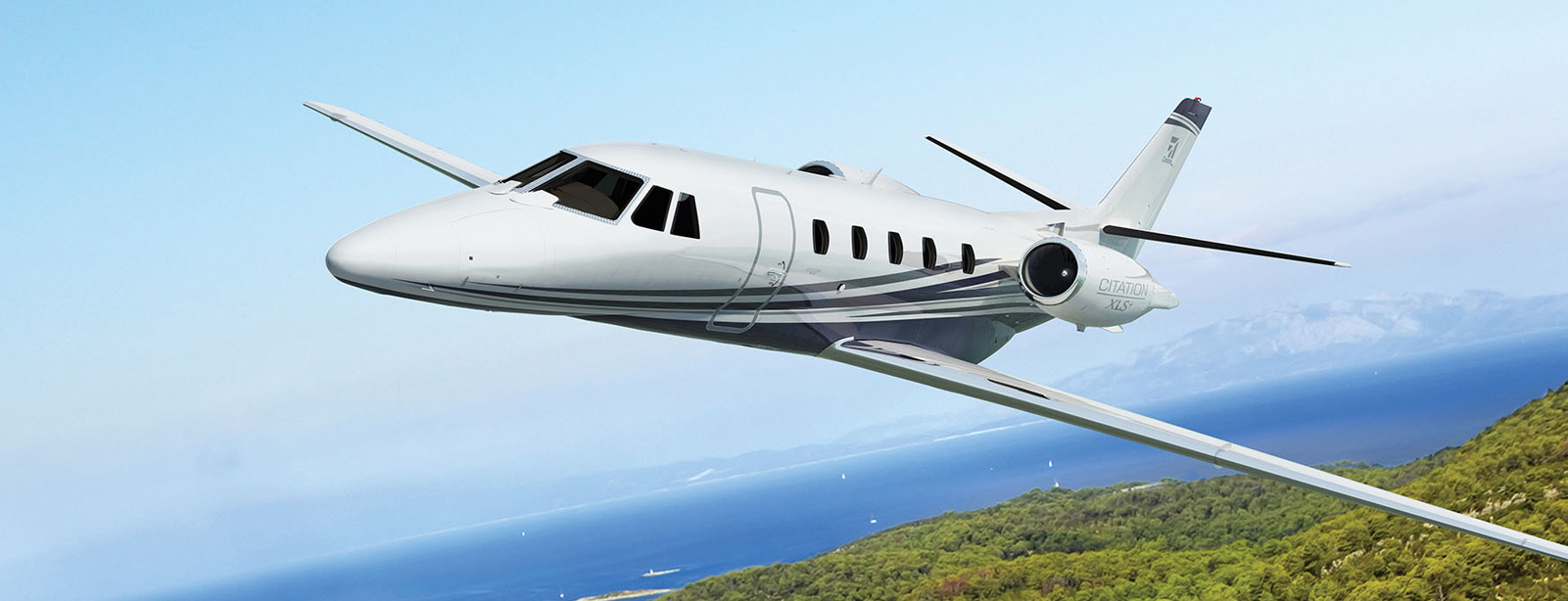

The Citation XLS Gen2® combines transcontinental range, first-class cabin comfort for up to 9 passengers and remarkable performance efficiency in a beautiful midsize jet. Loaded with features generally reserved for a large, commercial aircraft, the Citation XLS+ will take your business global. Sit back and enjoy the ride.

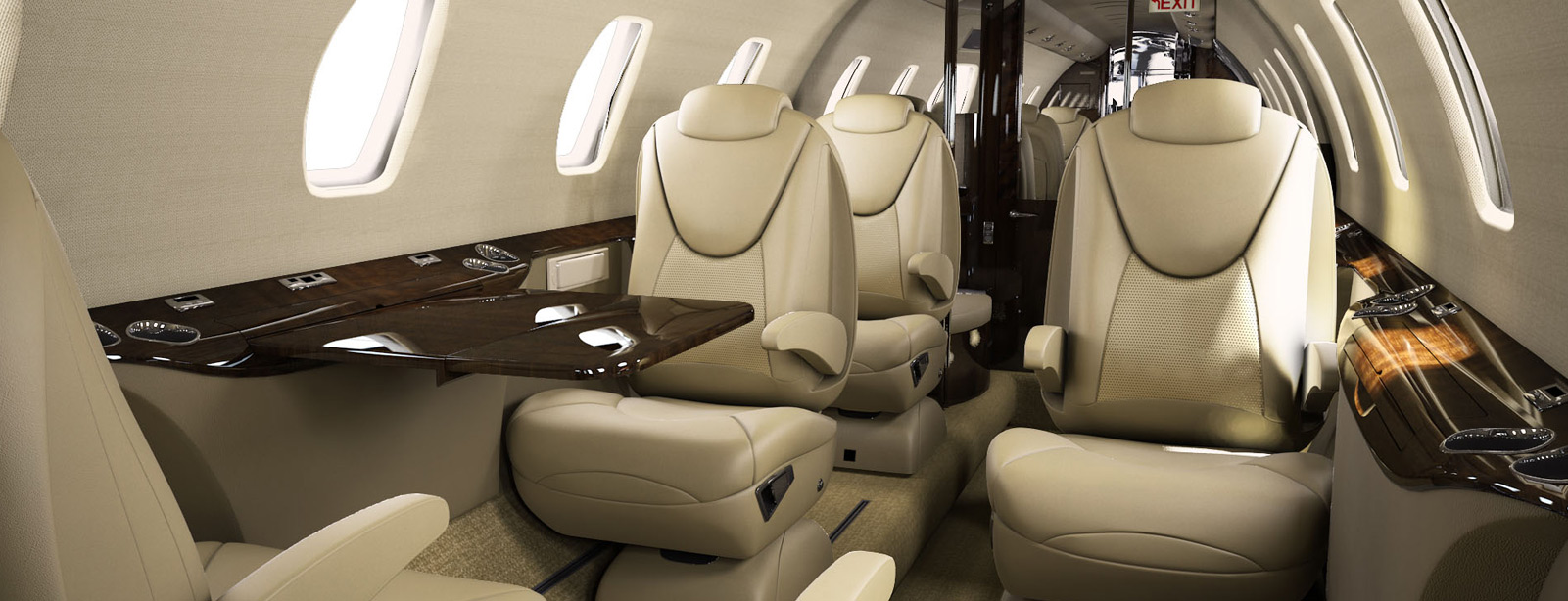

Interior

Undeniably appealing business interiors

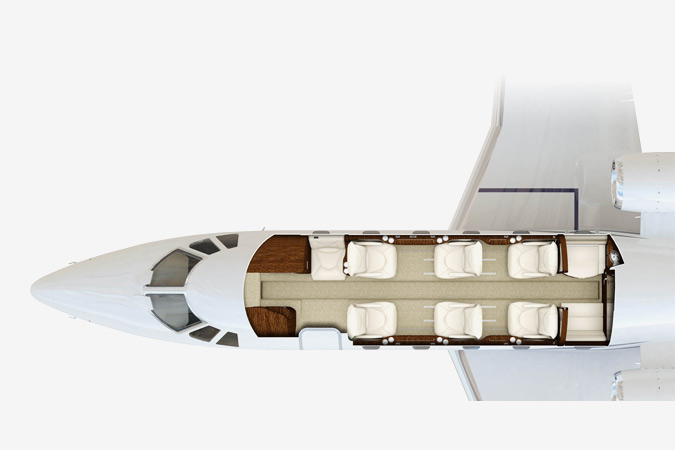

LARGEST CABIN IN ITS CLASS

Travel in comfort and arrive closer to your final destination

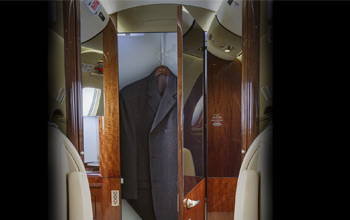

STORAGE FOR THE WHOLE TEAM

Plentiful closet space throughout the cabin

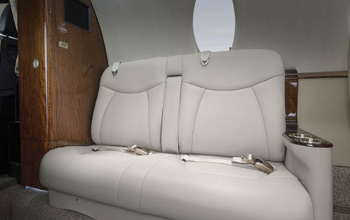

TOTAL CABIN COMFORT

Side facing couch for extra, comfortable cabin seating

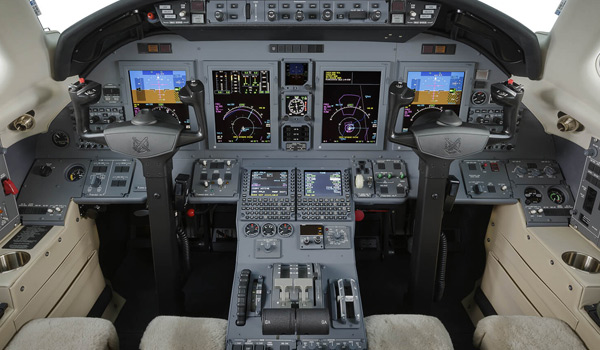

Avionics

The Heart of your Travel

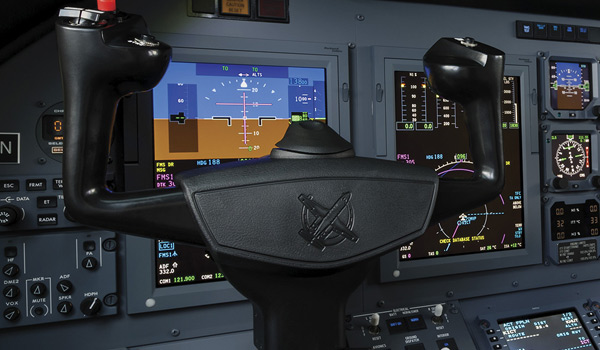

Simpler controls and brighter displays, all powered by Rockwell Collins Pro Line 21™ avionics, make the Citation XLS+ smarter than ever.

This line of avionics provides weather navigation systems, airport diagrams, detailed flight status data, checklists, diagnostic systems and are directly in the crew’s line of sight. Angled control panels and four tilted eight by ten inch displays show flight information in simple, clear readouts.

PRO line 21 is Performance

Your XLS+ will give you instant, accurate and up-to-date weather information for your flight path via the XM WX Satellite Weather® Data Service. This long-range, comprehensive weather detection system provides sharp situational awareness for both pilots and copilots.



With upgraded software, pilots can view satellite imagery with NEXRAD overlays, see Temporary Flight Restrictions (TFR) both in graphical and textual formats, view winds aloft and view cloud-to cloud lightning with strikes data refreshed every five minutes. Images and data are available at any altitude and are processed through a receiver supplied on a Head-Up Display (HUD) technologies which are then stored in the file server unit (FSU) for immediate access.



Standard Features

  • Dual 8 x 10-inch Primary Flight Displays
  • Dual 8 x 10-inch Multifunction Displays
  • Electronic Flight Information System
  • Crew Alerting System
  • Flight Guidance System
  • Dual Air Data Computers
  • XM Broadcast Weather (U.S.)
  • Emergency Descent Mode
  • Dual Attitude Heading Reference System
  • Integrated Electronic Checklists
  • Electronic Charts
  • Flight Management System
  • Global Positioning System
  • Terrain Awareness Warning System (TAWS)
  • Traffic Collision Avoidance System (TCAS II)
  • Maintenance Diagnostic System


Specifications

Performance Without Compromise

Dimensions

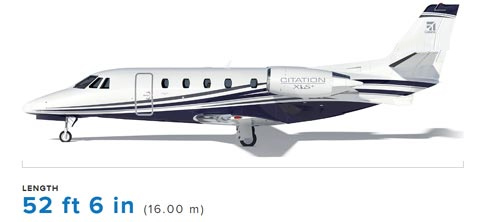

Length 52 ft 6 in (16.00 m)

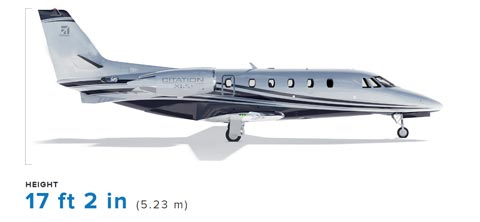

Height 17 ft 2 in (5.23 m)

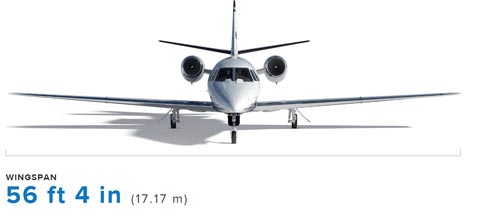

Wingspan 56 ft 4 in (17.17 m)
Wing Area 370 sq ft (34.35 sq m)
Wing Sweep 0.0 degrees
Wheelbase 21 ft 11 in (6.68 m)
Tread 14 ft 11 in (4.55 m)
Cabin Interior
Height 68 in (1.73 m)
Width 66 in (1.68 m)
Length 18 ft 6 in (5.64 m)
Maximum Passengers 9
Baggage Capacity
Weight 800 lb (362.9 kg)
Volume 90 cu ft (2.55 cu m)
Weights
Maximum Ramp Weight 20,400 lb (9,253 kg)
Maximum Takeoff Weight 20,200 lb (9,163 kg)
Maximum Landing Weight 18,700 lb (8,482 kg)
Maximum Zero Fuel Weight 15,100 lb (6,849 kg)
Usable Fuel Weight 6,740 lb (3,057 kg)
Usable Fuel Volume 1,006 gal (3,808 l)
Basic Operating Weight 12,860 lb (5,833 kg)
Useful Load 7,540 lb (3,420 kg)
Maximum Payload 2,240 lb (1,016 kg)
Full Fuel Payload 800 lb (363 kg)
Performance
Maximum Cruise Speed 441 ktas (817 km/h)
Maximum Range 2,100 nm (3,889 km)
Takeoff Field Length 3,560 ft (1,085 m)
Landing Distance 3,180 ft (969 m)
Maximum Operating Altitude 45,000 ft (13,716 m)
Maximum Climb Rate 3,500 fpm (1,067 mpm)
Maximum Limit Speed 0.75 Mach (0.75 Mach)

Powerplant
Manufacturer Pratt & Whitney
Model PW545C
Thrust 4,119 lb (18.32 kN)
