• 1,550

    Maximum Range

  • 404

    Maximum Cruise Speed

  • 7

    Maximum Passengers

  • 3,810

    Useful Load

  • 3,210

    Takeoff Distance

Achieve New Heights

The Citation® M2 Gen2® jet is the ultimate combination of beauty and efficiency. The M2 Gen2 is the entry level jet that pilots have been asking for. Perfect for corporate, charter or private use, the M2 Gen2 features a redesigned interior with excellent in-cabin technologies, updated touch-controlled avionics suited for a single pilot and two powerful Williams FJ44 engines, facilitating cruising speed of up to 400 knots.




Interior

Treat Yourself To Comfort

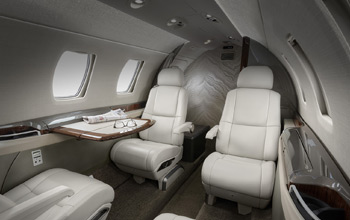

ELEGANT CABIN DESIGN

The M2 Gen2 offers a wide selection of custom configurations with an all new interior, in-cabin technologies, climate control and adjustable lighting.

CONNECTIVITY AND CONTROL

The optional cabin management system, moving map and in-flight entertainment system keep you connected and in control.

TRAVEL IN STYLE AND COMFORT

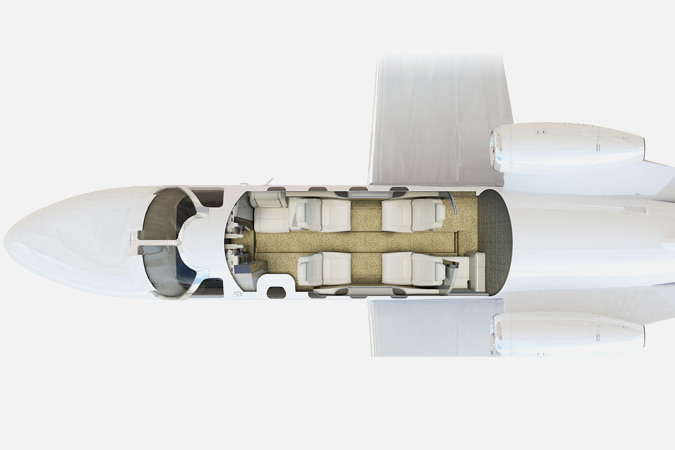

The interior layout provides seating for up to seven passengers to work and relax comfortably, with eight large windows to emphasize the spaciousness of the cabin.



Avionics

Precision at your Command

User-friendly touch screens powered by Garmin® G3000™ avionics make for intuitive control, while Synthetic Vision Technology (SVT™) provides a clear, concise picture of your flying environment.

The M2 Gen2 is equipped with a fully digital, dual-channel autopilot system equipped with many features for added safety, redundancy and reliability. Integrating data from the avionics system, the AP is built to inspire confidence while ensuring optimum smoothness and comfort.

Enhanced Flight Planning

The system uses pre-stored airspeed-limit data along with autopilot gains that are scheduled to optimize performance to offer excellent stability and control. The autopilot maximizes aircraft performance with precise lateral and vertical navigation guidance for all phases of flight.

Precision at your Command

The autopilot system is simple and straightforward to operate yet sophisticated and state-of-the-art, which makes flying the M2 Gen2 easier, consistent and more enjoyable.



Standard Features

  • Garmin FMS with dual WAAS-enabled GPS receivers for navigation
  • Weather Avoidance Radar
  • Terrain Avoidance Warning System (TAWS-B)
  • Garmin Traffic Collision and Avoidance System (TCAS I)
  • Dual Attitude Heading Reference System
  • Dual Air Data computers
  • Jeppesen ChartView
  • Garmin Safe Taxi
  • Digital Audio System

Optional Avionics Include Optional

  • Garmin SVT™ Synthetic Vision Technology
  • Domestic and International Internet
  • XM Satellite Weather and Radio
  • Traffic Collision Avoidance System (TCAS II)
  • Terrain Awareness Warning System Class A (TAWS-A)
  • Cabin Briefer
  • Jeppesen ChartView
  • Satellite phone system
  • HF-9000 High Frequency Communications


Specifications

Performance Without Compromise

Dimensions

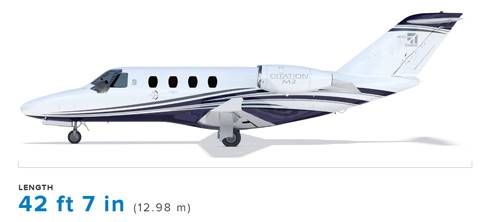

Length 42 ft 7 in (12.98 m)
Height 13 ft 11 in (4.24 m)

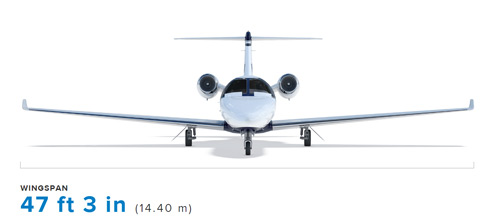

Wingspan 47 ft 3 in (14.40 m)
Wing Area 240 sq ft (22.3 sq m)
Wing Sweep 0.0 degrees
Wheelbase 15 ft 4 in (4.67 m)
Tread 13 ft (3.96 m)
Cabin Interior
Height 57 in (1.45 m)
Width 58 in (1.47 m)
Length 11 ft (3.35 m)
Maximum Passengers 7
Single Pilot Certified Yes
Baggage Capacity
Weight 725 lb (328.9 kg)
Volume 46 cu ft (1.29 cu m)
Weights
Maximum Ramp Weight 10,800 lb (4,899 kg)
Maximum Takeoff Weight 10,700 lb (4,853 kg)
Maximum Landing Weight 9,900 lb (4,491 kg)
Maximum Zero Fuel Weight 8,400 lb (3,810 kg)
Usable Fuel Weight 3,296 lb (1,495 kg)
Usable Fuel Volume 492 gal (1,862 l)
Basic Operating Weight 6,990 lb (3,171 kg)
Useful Load 3,810 lb (1,728 kg)
Maximum Payload 1,410 lb (640 kg)
Full Fuel Payload 514 lb (233 kg)
Performance
Maximum Cruise Speed 404 ktas (748 km/h)
Maximum Range 1,550 nm (2,871 km)
Takeoff Field Length 3,210 ft (978 m)
Landing Distance 2,590 ft (789 m)
Maximum Operating Altitude 41,000 ft (12,497 m)
Maximum Climb Rate 3,698 fpm (1,127 mpm)
Maximum Limit Speed 0.71 Mach (0.71 Mach)

Powerplant
Manufacturer Williams International
Model FJ44-1AP-21
Thrust 1,965 lb (8.74 kN)
