• 2,692

    Maximum Range

  • 303

    Maximum Cruise Speed

  • 15

    Maximum Occupants

  • 7,145

    Useful Load

  • 4,057

    Takeoff Distance

One Aircraft, Many Missions

When government, military and commercial customers want airborne solutions for critical missions, they turn to BEECHCRAFT. Our aircraft provide the high performance and flight characteristics required to address the unique challenges of special mission operations.

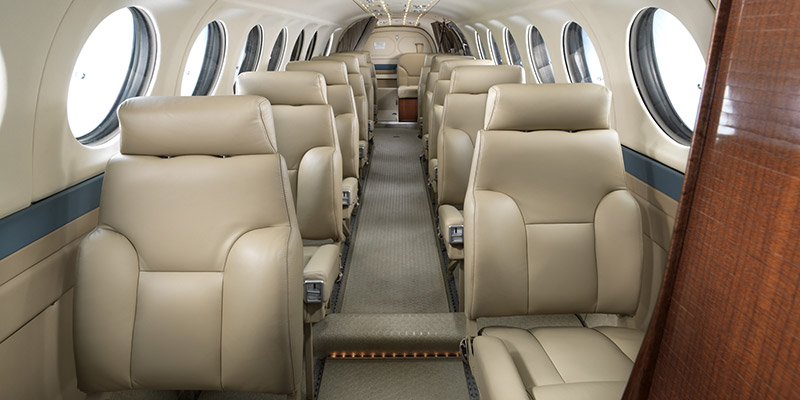

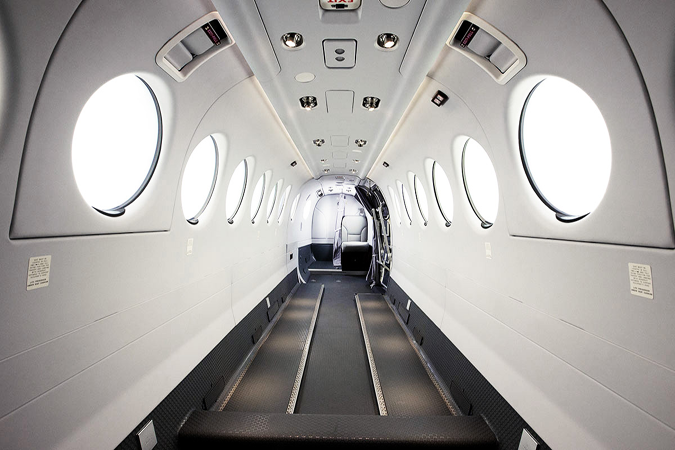

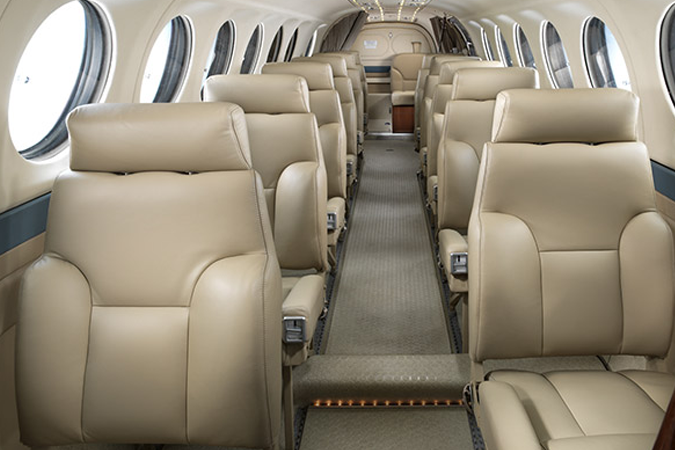

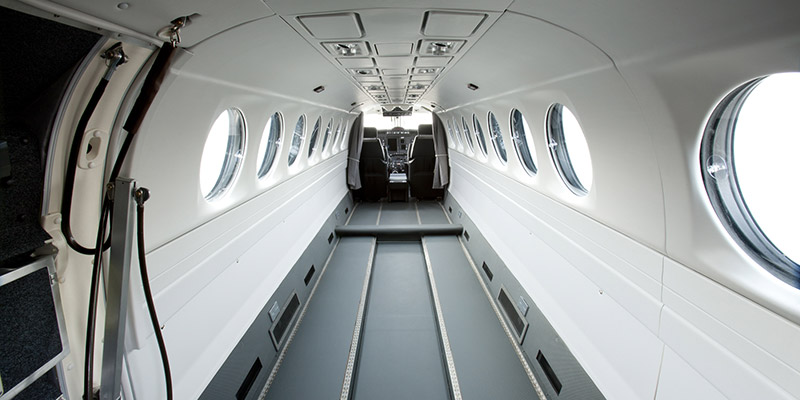

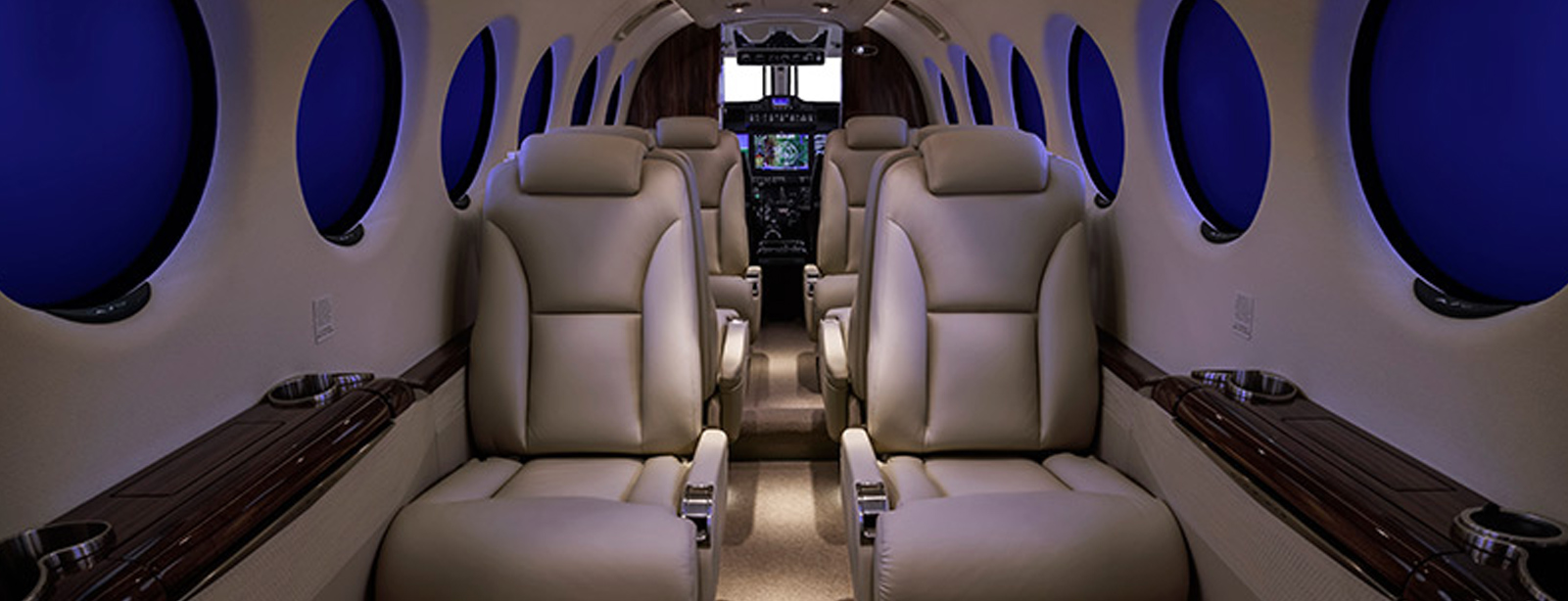

Interior

Multi-Mission Interior

The Beechcraft KING AIR 360ER aircraft offers flexible, reconfigurable interiors, making them equally adept at accommodating passengers, cargo, air ambulance or other missions. It's no surprise organizations choose Beechcraft to transport their important personnel and cargo – no matter where they fly.

Available Seating Up To 15 Occupants

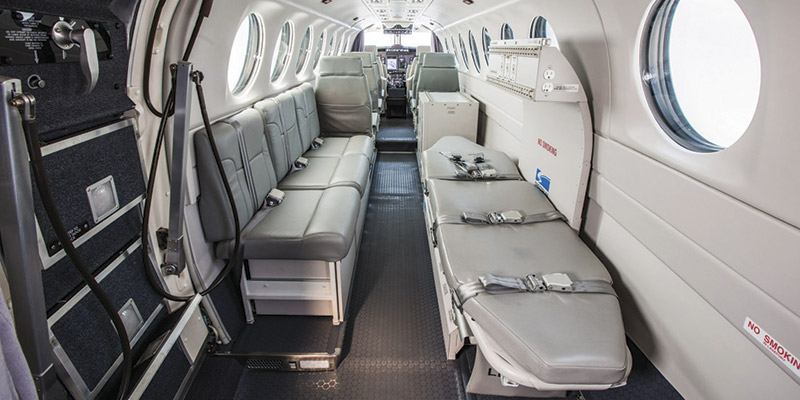

The King Air 360ER aircraft offers flexible, reconfigurable interiors making them equally capable of accommodating passengers, cargo, or air ambulance operations.

Reconfigurable Interior

The King Air 360ER aircraft offers flexible, reconfigurable interiors making them equally capable of accommodating passengers, cargo, or air ambulance operations.

Transitional Installations

Interior installations can quickly accommodate a variety of missions.



Avionics

Inspired Control

The next King Air 360ER turboprop reduces pilot workload with standard features like the IS&S ThrustSense Autothrottle, which delivers precision control for optimized power output, including Overtorque/Overtemp protection for a more efficient takeoff. Digital pressurization automatically schedules cabin pressure on both climb and descent, increasing passenger comfort and further reducing pilot workload.



Standard Features

  • IS&S ThrustSense Autothrottle
  • Digital Pressurization Indication
  • Collins Aerospace Pro Line Fusion Avionics Suite
    • Three 14 inch touchscreen displays
    • Synthetic Vision
    • Graphical Flight Planning
    • Integrated Charts and Maps
  • Engine Indicating and Crew Alerting System (EICAS)
  • Dual Flight Management System (FMS)
  • Multi-Scan Weather Radar System (WXR)
  • Integrated Terrain Awareness and Warning System (ITAWS)
  • Traffic Alert and Collision Avoidance (TCAS II)
  • Automatic Flight Guidance System (AFGS)
  • Dual Navigation and Communication Radios


Specifications

Performance Without Compromise

Dimensions
Length 46 ft 8 in (14.2 m)
Height 14 ft 4 in (4.4 m)
Wingspan 57 ft 11 in (17.65 m)
Wing Area 310 sq ft (28.8 sq m)
Wheelbase 16 ft 3 in (4.95 m)
Tread 17 ft 2 in (5.23 m)
Cabin Interior
Height 57 in (1.4 m)
Width 54 in (1.37 m)
Length 19 ft 6 in (5.9 m)
Maximum Occupants 15
Baggage Capacity
Weight N/A
Volume N/A
Weights
Maximum Ramp Weight 16,600 lb (7,530 kg)
Maximum Takeoff Weight 16,500 lb (7,484 kg)
Maximum Landing Weight 15,675 lb (7,110 kg)
Usable Fuel Weight 5,192 lb (2,355 kg)
Usable Fuel Volume 775 gal (2,934 l)
Basic Empty Weight Basic Operating Weight 9,455 lb (4,289 kg)
Useful Load 7,145 lb (3,241 kg)
Maximum Payload 3,545 lb (1,608 kg)
Full Fuel Payload 1,953 lb (886 kg)
Performance
Maximum Cruise Speed 303 ktas (561 km/h)
Maximum Range 2,692 nm (4,986 km)
Takeoff Field Length 4,057 ft (1,237 m)
Landing Distance 2,981 ft (909 m)
Maximum Operating Altitude 35,000 ft (10,668 m)
Maximum Climb Rate 2,400 fpm (732 mpm)
Maximum Limit Speed 245 kias (454 km/h)
Stall Speed 80 kcas (148 km/h)

Powerplant
Manufacturer Pratt & Whitney Canada
Model PT6A-60A
Power Rating 1,050 shp (1,050 shp)
Propeller Manufacturer Hartzell
Description 4 blade, constant-speed, auto feathering, reverse
