• 2,040

    Maximum Range

  • 416

    Maximum Cruise Speed

  • 9

    Maximum Passengers

  • 5,530

    Useful Load

  • 3,180

    Takeoff Distance

Efficient and Dependable

The Citation® CJ3+® jet delivers superior unparalleled reliability without sacrificing productivity and comfort. With upgraded Intrinzic™ flight deck power by Garmin® G3000™, operating this single-pilot certified jet is so intuitive; it’s fueling the passion for flight in pilots and passengers alike.




Interior

Space, Comfort and Class

FIRST-CLASS AESTHETICS

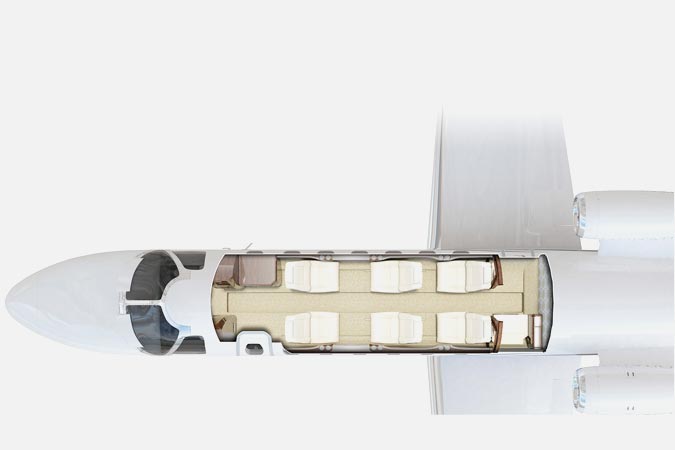

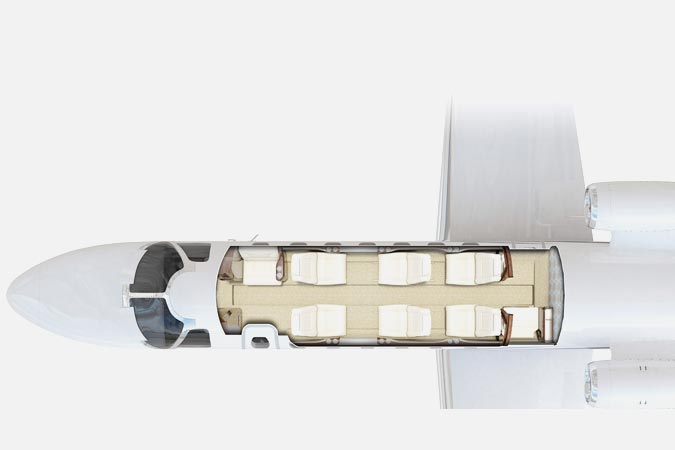

The CJ3+ provides adjustable seating for six passengers in a center club arrangement around two executive foldout tables

IN-CABIN TECHNOLOGY

Stay seamlessly connected to the world below with wireless intelligent cabin technology designed especially for the Citation line

ROOM FOR WORK AND RELAXATION

A quiet cabin creates a peaceful, productive environment



Avionics

PILOT-FOCUSED FLIGHT DECK

The enhanced flight deck powered by Garmin® G3000™ provides touch screen controls and large format displays which provide pilots optimal awareness.

Reliability and Awareness

The CJ3+ is equipped with a fully digital, dual-channel autopilot (AP) system equipped with many features for added redundancy and reliability. Integrating data from the avionics system, the AP is built to inspire confidence while ensuring smoothness and comfort.

The system is powered by the Garmin® GFC™ 700, a control system that has flight director, autopilot, yaw damper, and features that provide top-level performance. The GFC 700 allows for outstanding flight automation and precision. The AP maximizes aircraft performance with precise lateral and vertical navigation guidance for all phases of flight. It can maintain altitude, airspeed, vertical speed and heading, in addition to flying VNAV descent profiles, automated Takeoff/Go-Around procedures and more.

The CJ3+ has an AP system that is simple and straightforward to operate yet sophisticated and state-of-the-art, which makes flying the CJ3+ easier, safer, more consistent and more enjoyable.



Standard Features

  • Garmin FMS with dual WAAS-enabled GPS receivers for navigation
  • Weather Avoidance Radar
  • Terrain Avoidance Warning System (TAWS-B)
  • Traffic Collision and Avoidance System (TCAS II)
  • Dual Attitude Heading Reference System
  • Dual Air Data computers
  • Jeppesen ChartView
  • Garmin Safe Taxi
  • Digital Audio System

Optional Avionics Include

  • Garmin SVT™ Synthetic Vision Technology
  • Terrain Awareness Warning System Class A (TAWS-A)
  • SiriusXM Satellite Radio
  • Cabin Briefer
  • Satellite phone system
  • Domestic and International Internet
  • XM Satellite Weather and Radio
  • HF-9000 High Frequency Communications


Specifications

Dimensions
Length 51 ft 2 in (15.59 m)
Height 15 ft 2 in (4.62 m)

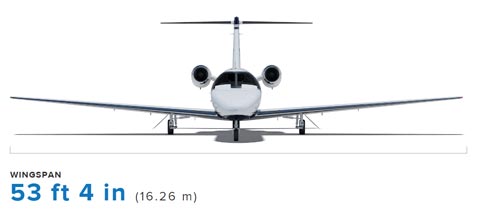

Wingspan 53 ft 4 in (16.26 m)
Wing Area 294 sq ft (27.32 sq m)
Wing Sweep 0.0 degrees
Wheelbase 20 ft (6.10 m)
Tread 16 ft (4.88 m)
Cabin Interior
Height 57 in (1.45 m)
Width 58 in (1.47 m)
Length 15 ft 8 in (4.78 m)
Maximum Passengers 9
Single Pilot Certified Yes
Baggage Capacity
Weight 1,000 lb (453.6 kg)
Volume 65 cu ft (1.84 cu m)
Weights
Maximum Ramp Weight 14,070 lb (6,382 kg)
Maximum Takeoff Weight 13,870 lb (6,291 kg)
Maximum Landing Weight 12,750 lb (5,783 kg)
Maximum Zero Fuel Weight 10,510 lb (4,767 kg)
Usable Fuel Weight 4,710 lb (2,136 kg)
Usable Fuel Volume 703 gal (2,661 l)
Basic Operating Weight 8,540 lb (3,874 kg)
Useful Load 5,530 lb (2,508 kg)
Maximum Payload 1,970 lb (894 kg)
Full Fuel Payload 820 lb (372 kg)
Performance
Maximum Cruise Speed 416 ktas (770 km/h)
Maximum Range 2,040 nm (3,778 km)
Takeoff Field Length 3,180 ft (969 m)
Landing Distance 2,770 ft (844 m)
Maximum Operating Altitude 45,000 ft (13,716 m)
Maximum Climb Rate 4,478 fpm (1,365 mpm)
Maximum Limit Speed 0.737 Mach (0.737 Mach)

Powerplant
Manufacturer Williams International
Model FJ44-3A
Thrust 2,820 lb (12.54 kN)
