• 1,070

    Maximum Range

  • 186

    Maximum Cruise Speed

  • 10 - 14

    Maximum Occupants

  • 3,305

    Useful Load

  • 2,055

    Takeoff Distance

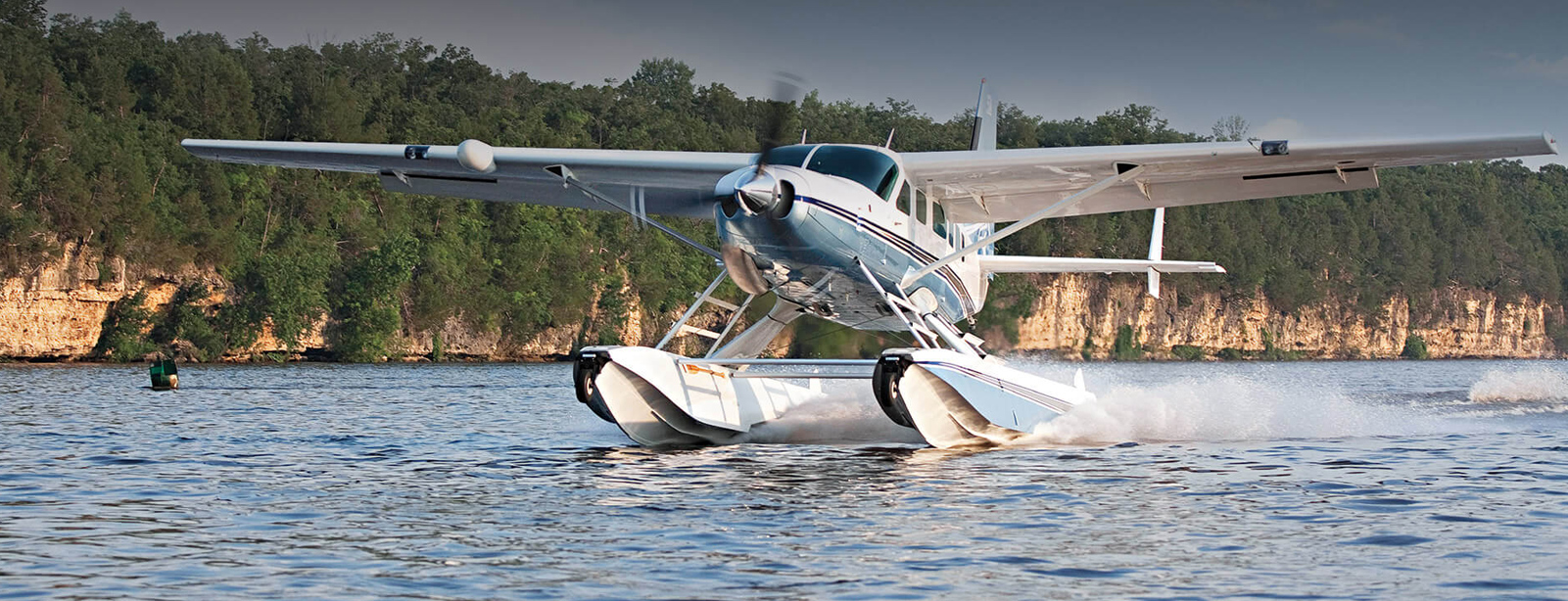

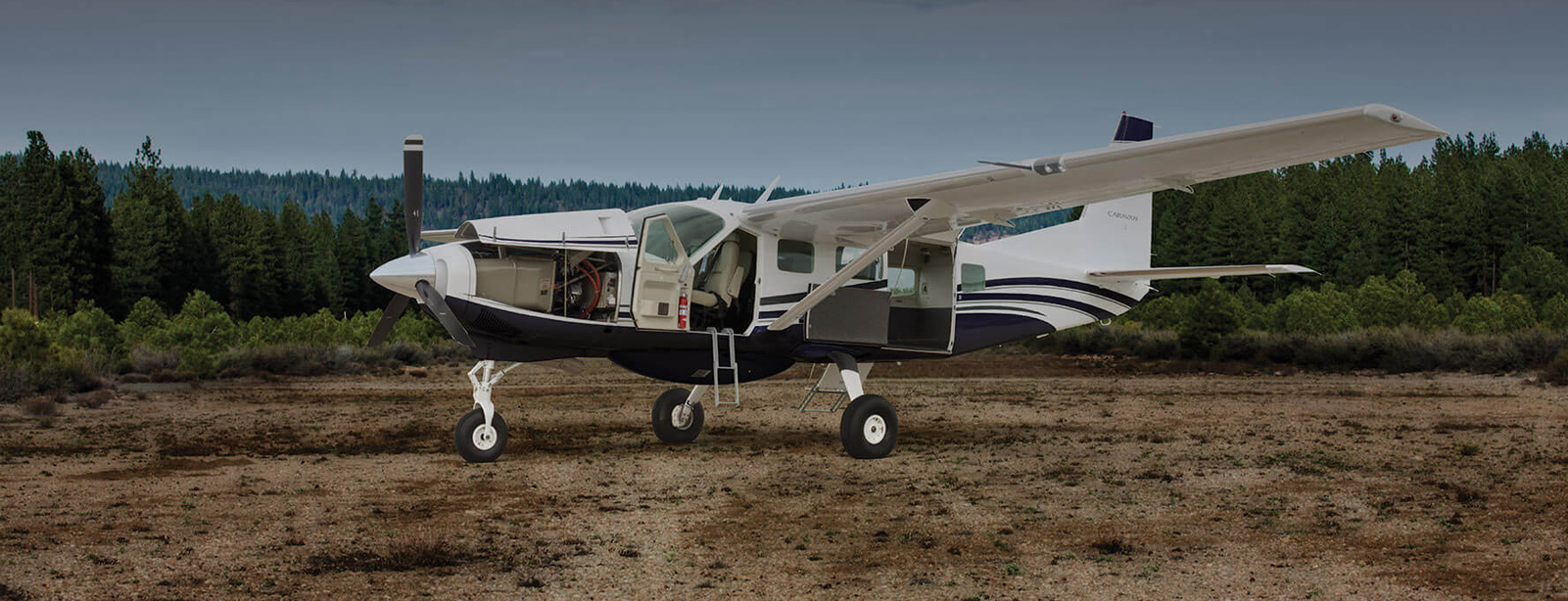

The Original Trailblazer

The Cessna® Caravan® is known for its rugged utility and flexibility. With its powerful turboprop engine, the Caravan delivers the rare combination of high performance, low operating costs and ability to adapt to a wide variety of missions.




Interior

From Passengers To Cargo To Special Mission

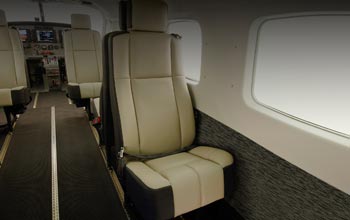

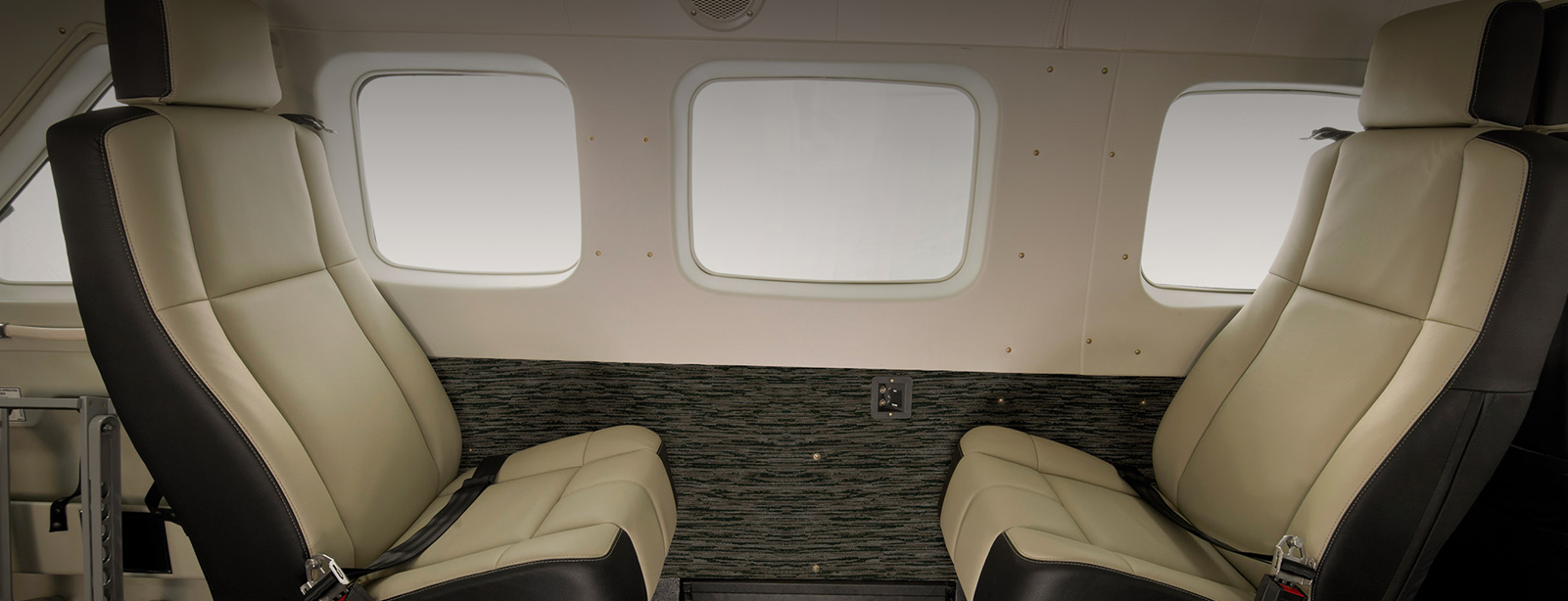

DURABILITY

Leather-like durable luxury fabric covers each seat, providing a stain-resistant and antimicrobial finish to round out this durable yet versatile interior.

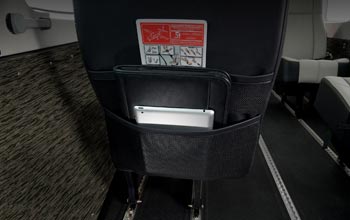

AMPLE STORAGE

Additional under-seat and back-pocket storage for all your carry on needs.

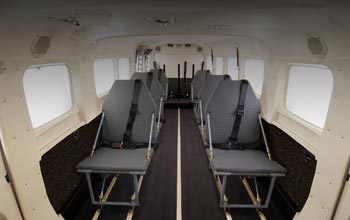

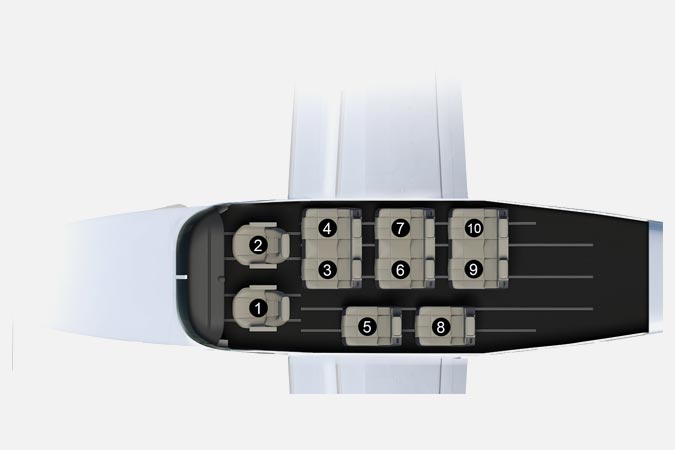

BUSINESS VERSATILITY

Seating can be easily customized using full-length seat tracks to maximize capacity for passengers, cargo space or the ideal combination of both.




Standard Features

  • GDU 1050A Pilot and Copilot Primary Flight Displays (PFD)
  • GDU 1050A Multifunction Display (MFD)
  • GDC 72 Dual Air Data Computer (ADC)
  • Garmin SafeTaxi
  • KN-63 DME
  • GEA 71 Engine/Airframe Unit
  • GRS 79 Dual Attitude and Heading Reference System (AHRS)
  • GMA 1360D Dual Audio System with bluetooth capability and 3D audio
  • Integrated VFR Sectional Charts
  • Flight Stream 510 for wireless database uploads and flight plan transfers
  • GTX 335R ADS-B Out Transponder
  • Garmin Relative Terrain/Obstacles
  • Garmin FliteCharts
  • IFR High and Low Altitude Charts with Auto/Day/Night Modes


Specifications

Dimensions

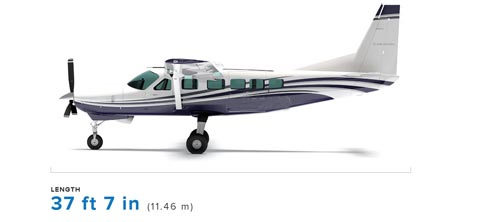

Length 37 ft 7 in (11.46 m)

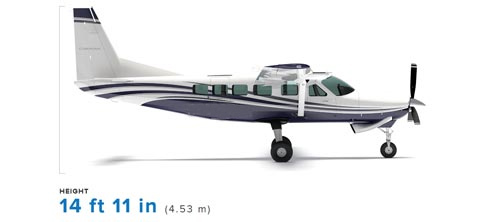

Height 14 ft 11 in (4.53 m)
Wingspan 52 ft 1 in (15.87 m)
Wing Area 279 sq ft (25.96 sq m)
Wheelbase 11 ft 8 in (3.54 m)
Tread 11 ft 8 in (3.56 m)
Cabin Interior
Height 54 in (1.37 m)
Width 64 in (1.63 m)
Length 12 ft 9 in (3.88 m)
Maximum Occupants 10 - 14
Baggage Capacity
Weight 325 lb (147.4 kg)
Volume 32 cu ft (0.89 cu m)
Weights
Maximum Ramp Weight 8,035 lb (3,645 kg)
Maximum Takeoff Weight 8,000 lb (3,629 kg)
Maximum Landing Weight 7,800 lb (3,538 kg)
Usable Fuel Weight 2,224 lb (1,009 kg)
Usable Fuel Volume 332 gal (1,257 l)
Basic Empty Weight 4,730 lb (2,145 kg)
Useful Load 3,305 lb (1,499 kg)
Maximum Payload 3,070 lb (1,393 kg)
Full Fuel Payload 1,081 lb (490 kg)
Performance
Maximum Cruise Speed 186 ktas (344 km/h)
Maximum Range 1,070 nm (1,982 km)
Takeoff Distance 2,055 ft (626 m)
Ground Roll 1,160 ft (354 m)
Landing Distance 1,625 ft (495 m)
Ground Roll 715 ft (218 m)
Maximum Operating Altitude 25,000 ft (7,620 m)
Maximum Climb Rate 1,234 fpm (376 mpm)
Maximum Limit Speed 175 kias (324 km/h)
Stall Speed 61 kcas (113 km/h)

Powerplant
Manufacturer Pratt & Whitney
Model PT6A-114A
Power Rating 675 shp (675 shp)
Propeller Manufacturer McCauley
Description 3 blade metal, constant speed, full feathering
